Hygienic Pump
MES Pumps and System offer range of centrifugal and positive displacement hygienic pumps to handle the various food products across the industry
_67f8d2eb62aa5.png)

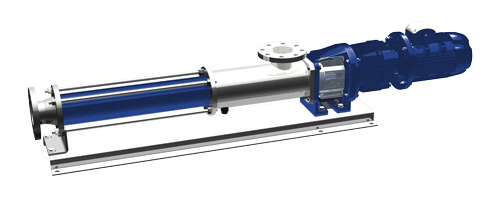

Hygienic Progressive Cavity Pump:
The most versatile pump with multiple variation to address easy and challenging applications e.g. from butter milk to butter. Products with almost all viscosities are being handled by PC Pumps.
Technical:
- Special design with CIP option is available
- Capacity: up to 200 m3/hr
- Pressure: up to 24 bar
- Viscosity: up to 1 million cst.
- Speed: up to 500 rpm
Standard Hygienic PC Pump:
- Different food connections are possible
- Option of pump with and without CIP Port
- Fixed base plate and trolley mounted options
Hopper Hygienic PC Pump
Wide hopper inlet as standard and different food connections in discharge.
Fixed base plate and trolley mounted options
_67f8d360ab76d.png)
_67f8d3c95b97d.jpg)

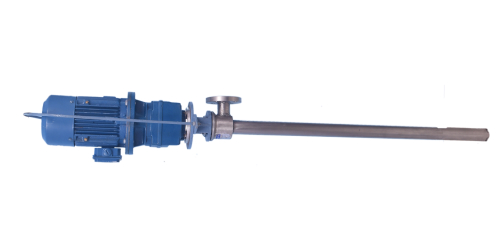

Barrel PC Pump
Standard vertical design for minimum opening size of 58 mm.
Special design available with hoist arrangement.

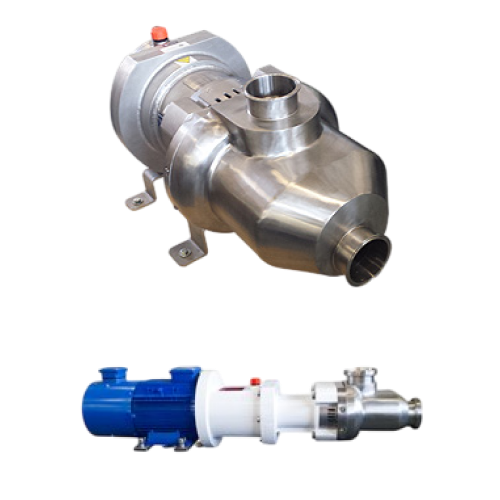

Hygienic Twin Screw Pump
2 in 1 Pump principle: With wide range of speed possibility, product pumping and CIP is achieved with only 1 pump.
Very low NPSHR: Can suction down to 0.1 bar (absolute) hence good against vacuum conditions. Low shear: Very low internal velocity of product inside pump result in gentle handling of product. All contact parts in metal – Temperature & other process limitations due to chemicals are very few.
Compact design and almost maintenance free: Screw moves inside in casing without being in contact resulting in virtually no wear.
Technical:
- EHEDG and 3A compliant design available
- Capacity: up to 180 m3/hr
- Pressure: up to 16 bar
- Viscosity: up to 1 million cst
- Speed: up to 3000 rpm
_67f8d48a7a119.png)
_67f8d51e69015.jpg)

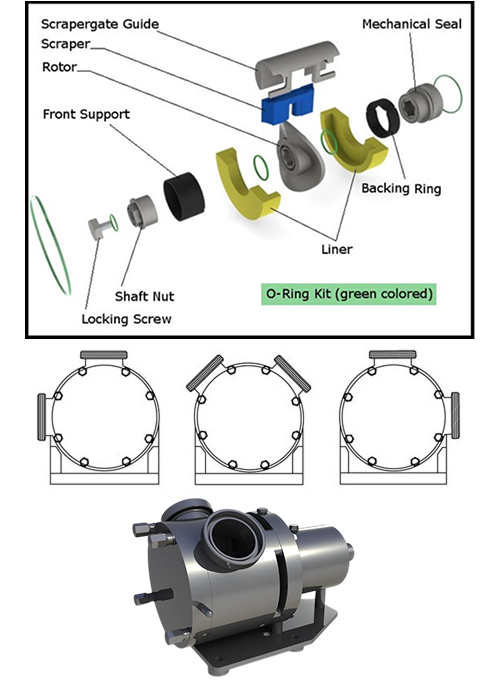

Sine Wave Pump
Virtually Pulsation Free: Continuous passage of fluids through sine wave cavities lead to gentle pumping. Maintenance Friendly with Low Maintenance: Maintenance can be done in place, got 1 shaft seal and Rotor is not among main wear parts resulting in low maintenance cost.
Low NPSHR: Can lift water from 30 feet thus excel in vacuum condition at pump inlet. Gentle Solids handling: Sinusoidal profile of Rotor ensure that solids are passed out without damage to their shape.
Energy Efficient: No gears, single seal and unique design results in low power consumption. Cleaning in Place: Unique pump design ensure CIP is faster and efficient especially with self-draining orientation of ports.
Technical:
- Capacity: up to 80 m3/hr
- Pressure: up to 12 bar
- Viscosity: up to 1 million cst.
- Speed: up to 1000 rpm
Hygienic Progressive Cavity Pump:
The most versatile pump with multiple variation to address easy and challenging applications e.g. from butter milk to butter. Products with almost all viscosities are being handled by PC Pumps.
Technical:
- Special design with CIP option is available
- Capacity: up to 200 m3/hr
- Pressure: up to 24 bar
- Viscosity: up to 1 million cst.
- Speed: up to 500 rpm
Standard Hygienic PC Pump:
- Different food connections are possible
- Option of pump with and without CIP Port
- Fixed base plate and trolley mounted options
Hopper Hygienic PC Pump
Wide hopper inlet as standard and different food connections in discharge.
Fixed base plate and trolley mounted options
Barrel PC Pump
Standard vertical design for minimum opening size of 58 mm.
Special design available with hoist arrangement.
Hygienic Twin Screw Pump
2 in 1 Pump principle: With wide range of speed possibility, product pumping and CIP is achieved with only 1 pump.
Very low NPSHR: Can suction down to 0.1 bar (absolute) hence good against vacuum conditions. Low shear: Very low internal velocity of product inside pump result in gentle handling of product. All contact parts in metal – Temperature & other process limitations due to chemicals are very few.
Compact design and almost maintenance free: Screw moves inside in casing without being in contact resulting in virtually no wear.
Technical:
- EHEDG and 3A compliant design available
- Capacity: up to 180 m3/hr
- Pressure: up to 16 bar
- Viscosity: up to 1 million cst
- Speed: up to 3000 rpm
Sine Wave Pump
Virtually Pulsation Free: Continuous passage of fluids through sine wave cavities lead to gentle pumping. Maintenance Friendly with Low Maintenance: Maintenance can be done in place, got 1 shaft seal and Rotor is not among main wear parts resulting in low maintenance cost.
Low NPSHR: Can lift water from 30 feet thus excel in vacuum condition at pump inlet. Gentle Solids handling: Sinusoidal profile of Rotor ensure that solids are passed out without damage to their shape.
Energy Efficient: No gears, single seal and unique design results in low power consumption. Cleaning in Place: Unique pump design ensure CIP is faster and efficient especially with self-draining orientation of ports.
Technical:
- Capacity: up to 80 m3/hr
- Pressure: up to 12 bar
- Viscosity: up to 1 million cst.
- Speed: up to 1000 rpm

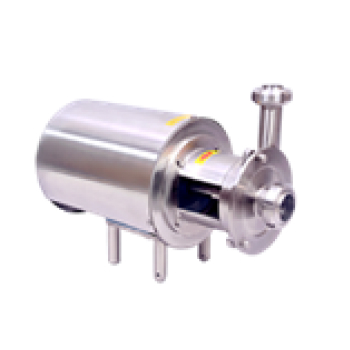

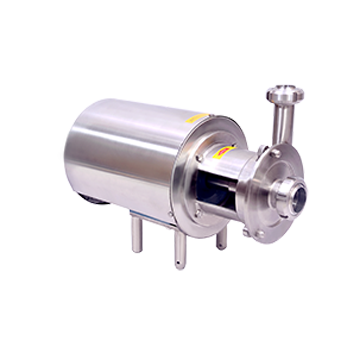

Hygienic CF Pump
Sanitary design
Sanitary design & 1 HP to 3 HP in single phase/ 3 phase option.

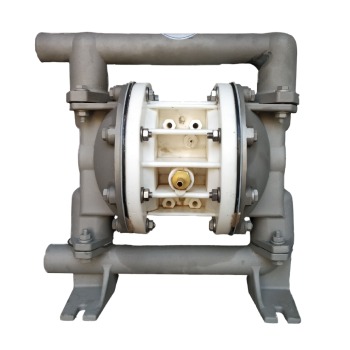

Stainless Steel AODD Pump
Size up to 3 inch and flow up to 900 LPM
Air Operated hence can be installed in Ex zones for flammable chemicals too.

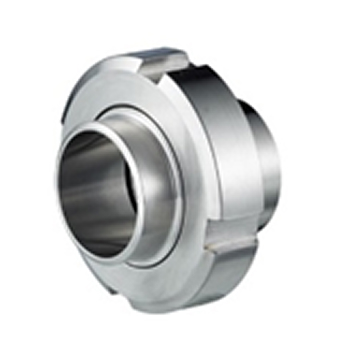

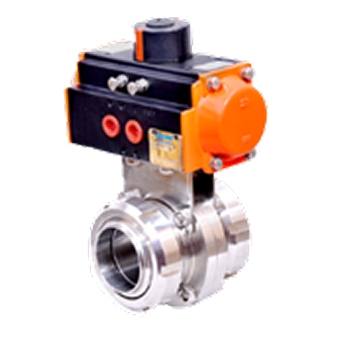

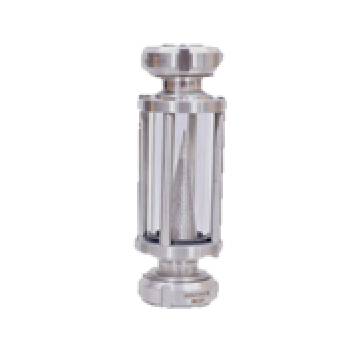

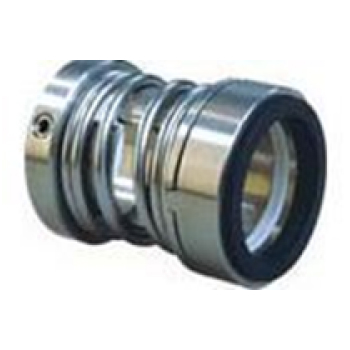

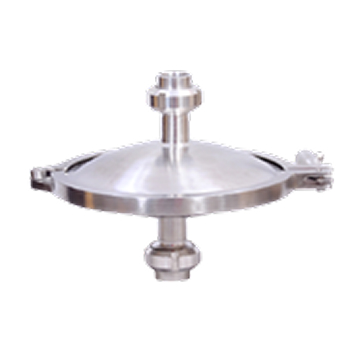

Accessories

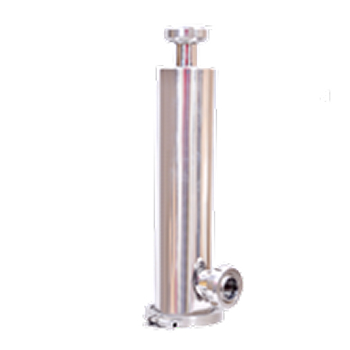

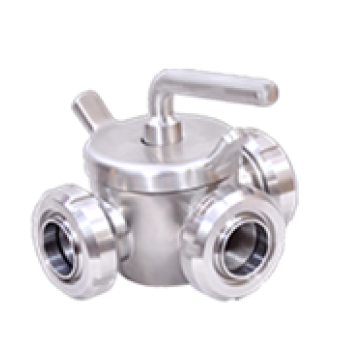

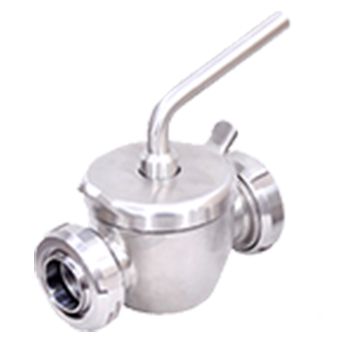

We do supply accessories e.g. filters, valves, fittings etc. as per sanitary designs.
MESPL Promise
- Will help customers take informed decision
- Will offer best value for money
- Will offer best possible technical support/ guidance.
- Willingness to offer customized solutions as per customer requirement.
