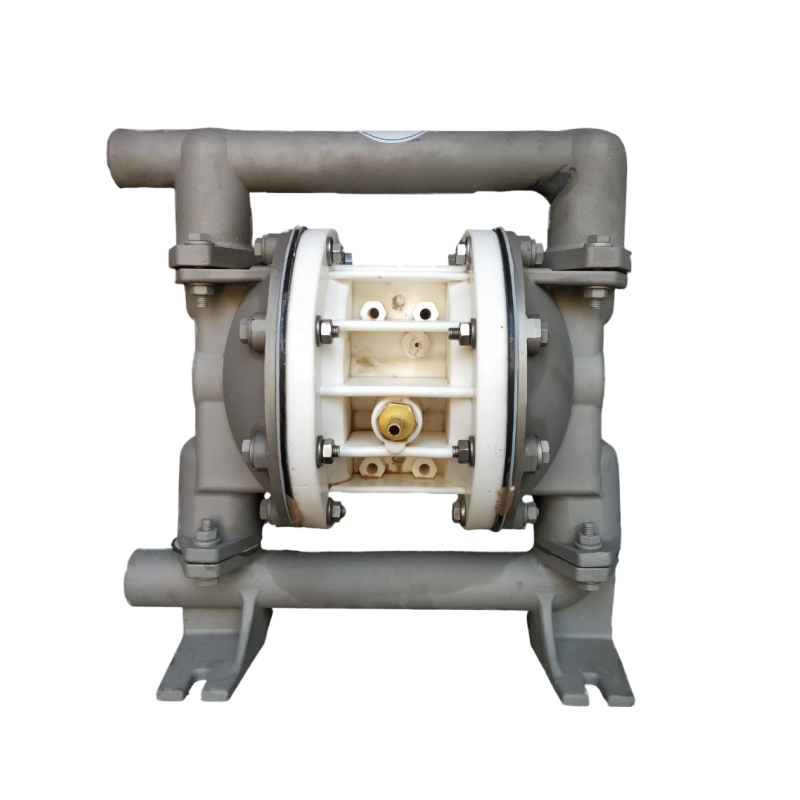

AODD Pump
AODD Pump
We offer range of AODD Pump suitable for handling different applications e.g. thin liquids, solvents, shear sensitive, barrel emptying, flame proof zones etc. They are available in Bolted construction as a robust design and available in different body material e.g. Aluminium, PP & Stainless steel to meet varied process and Industry demands.
Salient features of Pumps:
Due to their seal less design and compressed air as power source these pumps are mainly suitable for following applications:
- Shear-sensitive & Superior containment
- Unique top inlet and bottom discharge orientation to minimize product entrapment and settling of solids
- Flap valves for the passage of large-size solids
- Higher flow rates/increased pump output
- Viscous and non-viscous product transfer
- Good for intermittent operations
- Variable flow and pressure
- Intrinsically safe, Ease of operation and maintenance & Dry-run capable
- High suction lift & Portable and submersible
AODD Pump Range:
- Type: Air Operated Double Diaphragm
- Design Type: Bolted Construction
- Max. Flow: 900 LPM +
- Air Connection: 1/4 “ NPT
- Max. Suction Lift: 6.09 meter (Dry)
- Temp: -17 Deg. C to 220 Deg. C
- Body Material: PP/ PVDF/ Aluminum/ SS
- Diaphragm Material: Neoprene/ Santoprene/ Hypalon/ EPDM/ Teflon
