Progressive Cavity ( PC ) Pump
Progressive Cavity ( PC ) Pump
We offer range of progressive Cavity pumps suitable for handling different applications from thin liquid like Water to semi solid like paste, dewatered sludge. Special custom solutions are also available for applications e.g. MC pulp, spent grain, Multi- Phase, Grout, spent grain………..
Salient features of Pumps:
- High suction lift up to 9 MWC, very low NPSHR
- Reversible direction
- Low Internal velocity or Low shear pumping
- Non-clogging in nature
- Smooth & Quiet operation
- Can handle varying viscosities with ease.
- Installation in any position
Application areas:
PC Pumps can handle fluid with following characteristics and application requirements
- High solids content
- Abrasive slurries
- Lubricating & non- lubricating
- Thixotropic and dilatant
- Fluid with gas entrapped (multi phase)
- Shear sensitive products
- Product with hygienic requirement
- Very wide viscosity range- easily flow-able to semi solids products
- Product need to be pumped in small quantity for metering/ dosing
- Wide range of PH (0- 14)
PC PUMP RANGE
STANDARD INDUSTRIAL DESIGN
These pumps are available with different materials as explained above with flange design (threaded connection in smaller pumps sizes). Available in both horizontal and vertical design.

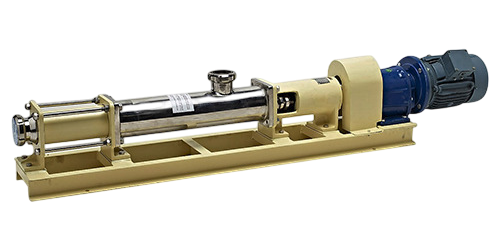

HYGIENIC FOOD PUMP
These pumps are available in Stainless Steel construction with or without CIP port and various end connections e.g. SMS, IDF, JIS Clamp or any special requirement can also be considered. Internal and external surface finish are hallmark of these pumps in order to meet stringent requirement of food industry.
Available in both horizontal and vertical design. Barrel empty pump and systems are also available in hygienic design. Barrel empty pumps are available for both aseptic bag type packaging or screw cap bung hole type drum system.
_67f8b67aa9bd5.png)

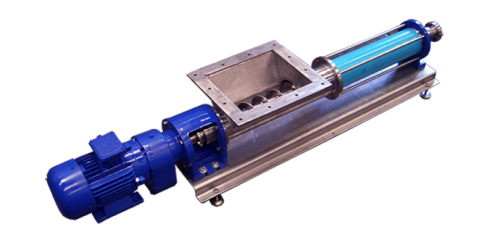

HOPPER PUMP
Available in both industrial design and hygienic surface finish. These pumps performs some of the unbelievable application in form of thick, pasty fluids generally considered as non-flow able. These pumps are also available in special design for challenging applications.

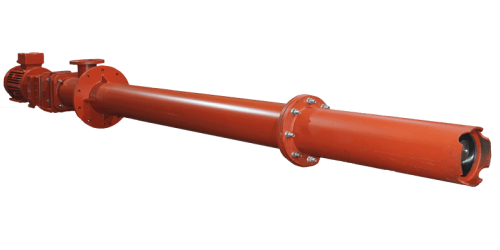

VERTICAL PUMP
These pumps are mainly used for Oil & Gas KOD (Knock Out Drum) or other Low HDHSR NPSHR applications where pumping elements are directly immersed in liquid and drive remain in dry condition. Different mounting arrangements as per individual project requirement are possible.
These pumps are available in both industrial and hygienic design. Industrial vertical pumps have varied mounting options as per application and hygienic pumps are commonly available in standard barrel empty type design.
_67f8b6e7da1d8.jpg)

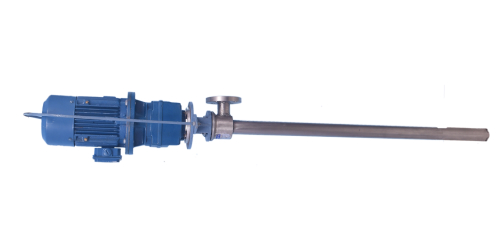

Barrel Empty Pump
These are high capacity Barrel Empty Pump for Barrel/Containers where wide opening is available for pump entry since pumping elements are directly immersed in liquid hence stator is encased in stainless steel casing for hygienic reason. These pumps are mainly for highly viscous/paste like products.

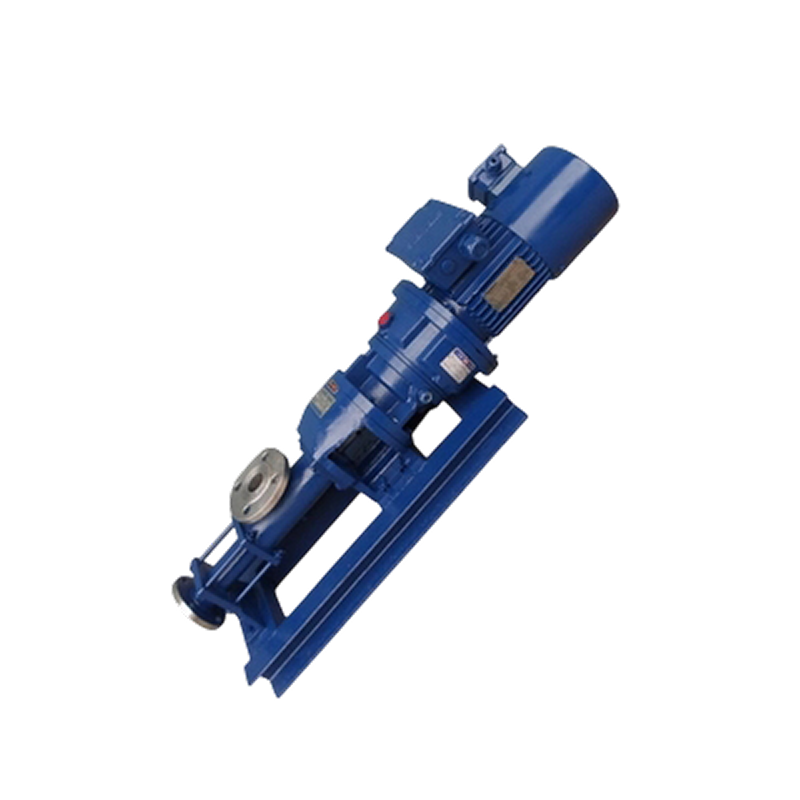

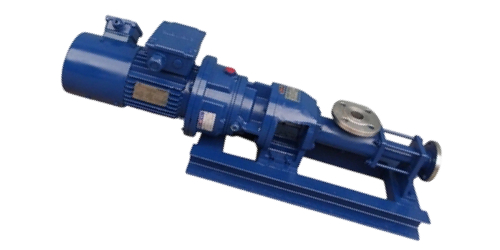

DOSING PUMP
These pumps are available for both process industry and food industry as per application demand. Repeatability, accuracy in discharge (>98%) and robust design makes PFS PC dosing pumps, one of the most reliable in chosen application.
HYGIENIC FOOD PUMP
These pumps are available in Stainless Steel construction with or without CIP port and various end connections e.g. SMS, IDF, JIS Clamp or any special requirement can also be considered. Internal and external surface finish are hallmark of these pumps in order to meet stringent requirement of food industry.
Available in both horizontal and vertical design. Barrel empty pump and systems are also available in hygienic design. Barrel empty pumps are available for both aseptic bag type packaging or screw cap bung hole type drum system.
HOPPER PUMP
Available in both industrial design and hygienic surface finish. These pumps performs some of the unbelievable application in form of thick, pasty fluids generally considered as non-flow able. These pumps are also available in special design for challenging applications.
VERTICAL PUMP
These pumps are mainly used for Oil & Gas KOD (Knock Out Drum) or other Low HDHSR NPSHR applications where pumping elements are directly immersed in liquid and drive remain in dry condition. Different mounting arrangements as per individual project requirement are possible.
These pumps are available in both industrial and hygienic design. Industrial vertical pumps have varied mounting options as per application and hygienic pumps are commonly available in standard barrel empty type design.
Barrel Empty Pump
These are high capacity Barrel Empty Pump for Barrel/Containers where wide opening is available for pump entry since pumping elements are directly immersed in liquid hence stator is encased in stainless steel casing for hygienic reason. These pumps are mainly for highly viscous/paste like products.
DOSING PUMP
These pumps are available for both process industry and food industry as per application demand. Repeatability, accuracy in discharge (>98%) and robust design makes PFS PC dosing pumps, one of the most reliable in chosen application.
We also offer following:
1. Retrofit spares with equivalent performance for major brand of PC Pumps.
2. Skid mounted pump/ dosing system with complete automation.
Custom Design Solutions:
These are specific application-based solution designs, based on the proven progressive cavity pump principle. They are designed to meet the specific process requirements in a efficient manner.
Some of our custom design solutions are:
- Grout Pump
- Chemical Dosing Skid s
- Spent Grain Pump
- Medium Consistency Pulp Pump
- Namkeen Extruder Pump
