Artificial Lift PC Pump

Artificial Lift PC Pump

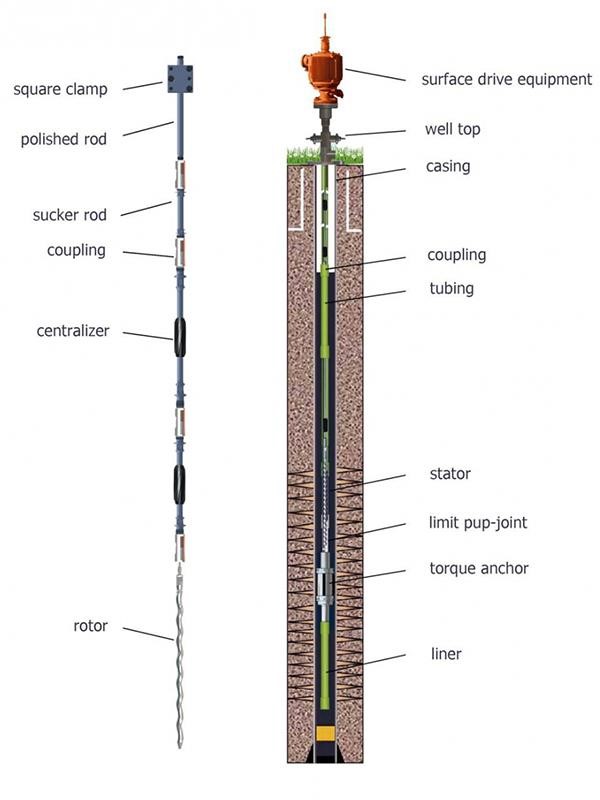

A downhole progressive cavity pump connects the stator and the rotor of the pump to the end of the tube and sucker rod. The ground drive equipment then rotates the rotor through use of the sucker rod, thereby lifting underground liquid to the surface. This cavity pump is often used lift crude oil under 8000mPa.s, making it useful for most thick oil wells, such as high sand wells, high gas wells, offshore oil field cluster well groups, horizontal wells and more.

Technical Parameters:

• Heat resistance: ≤150℃
• Fluid viscosity of well fluid: ≤8000mpa
• GOR: ＜10m³/ m³
• Submergence: ≥ 100m
• Volume of H2S: ≤ 2.5%
• Relative density of well fluid: ≤ 0.96
• API gravity: > 16
• Maximum depth: 2400m
• Well fluid sediment concentration: ≤10%
• Work efficiency: 1.5-170m³/day
